Transparent Concrete

Transparent Concrete:

A New Vision in the World of Construction

Concrete is one of the most widely used building materials in the world, and research and innovations are continually developing different types of concrete to improve its quality and value. In this context, transparent concrete stands out as a promising technology in various industries, particularly in interior architecture, where it is used as both an aesthetic element and an environmentally friendly material.

Definition of Transparent Concrete

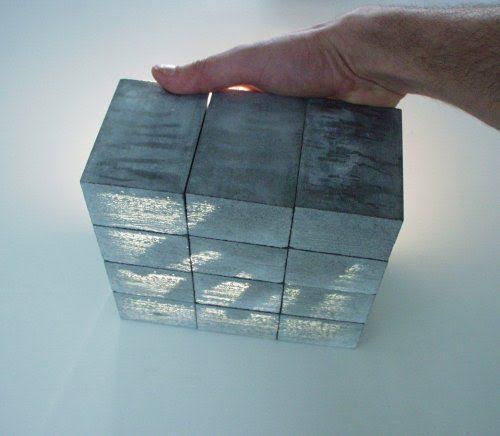

Transparent concrete is produced using optical fibers that allow light to pass through from one side to the other, enhancing the aesthetics of the building and reducing energy consumption. The optical fibers are evenly distributed within the concrete, enabling the visibility of shadow lines and patterns on the concrete surface.

Specifications of Transparent Concrete

Transparent concrete has several unique properties, including:

- *Fiber ratio*: 5% of the total mass.

- *Light transmission value*: 3% of the incident light.

- *Density*: Ranges between 2100 to 2400 kg/m³.

- *Compressive strength*: Ranges between 49 N/mm² and 56 N/mm².

- *Flexural strength*: Equivalent to 7.7 N/mm².

- *Block size*: 600 mm in length, 300 mm in width, and 25 to 500 mm in thickness.

- *Colors*: White, gray, and black.

History of Transparent Concrete

The concept of transparent concrete emerged in the early 20th century, but the real concept was introduced by Hungarian engineer Áron Losonczi in 2001. After that, the first transparent concrete block was produced and gained popularity in several countries.

Objectives of Using Transparent Concrete

The main objectives of using transparent concrete include:

- *Energy saving*: By utilizing natural light instead of artificial lighting.

- *Aesthetics*: Enhancing the aesthetic value of architectural structures.

- *Safety*: Providing safe structures through the use of fire alarm systems and damage detection.

Advantages of Transparent Concrete

- *Energy efficiency*: Reducing electricity consumption.

- *Environmentally friendly*: Reducing carbon footprint.

- *Aesthetics*: Enhancing the visual value of structures.

- *Safety*: Providing clear visibility in dark areas.

Applications of Transparent Concrete

Transparent concrete is used in:

- *Floors and superstructures*: As both a structural and aesthetic element.

- *Partition walls and doors*: To provide natural lighting.

- *Sidewalks and speed bumps*: To improve road safety.

Examples of Using Transparent Concrete

- *European Gate*: A memorial in Hungary showcasing the quality of light transmission.

- *Stuttgart City Library*: An example of using transparent concrete in designing a cube-shaped roof that allows natural light to pass through.

Conclusion

Transparent concrete represents a promising technology in the world of construction, combining aesthetics and energy efficiency. With ongoing developments in this field, its use is expected to increase in construction and interior architecture projects, enhancing the quality of life and environmental sustainability.
